X50N

XPC all-in-one X50N

15.6" All-in-One PC for POS, POI, Kiosk Applications

The Shuttle XPC all-in-one X50N complements Shuttle's successful X50V9 series and offers the same range of connections, but is equipped with the efficient Intel N150 processor. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

X50N
X50N_bk-82view-L-1
X50N_bk-backview
X50N_w-82view-R-1
display
ethernet
Fanless
hdmi
IP54
operation
  • Intel Processor N150 (Alder Lake-N)
  • 15.6" single-touch screen (39.6 cm) with IP54 protection
  • Up to 16 GB DDR5 memory
  • 1× HDMI 2.0b, 1× VGA
  • 1× 2.5" HDD/SSD and 1× M.2 SSD
  • 2.5 Gbit Ethernet, Wi-Fi 5 and Bluetooth
  • 2× USB 3.2 (10 Gbit), 4× USB 3.2 (5 Gbit), 2× COM (optional)
  • Integrated speaker, camera and microphone
  • Fanless design for 24/7 operation and VESA mounting option
  • Suitable for 12 or 19 V DC

Complete Systems

Shuttle Configurator
Configure your custom Mini-PC in just a few clicks

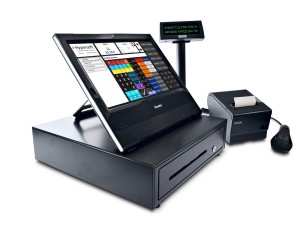

POS X50N Black
8 GB RAM, 128 GB SSD
w/o Operating System

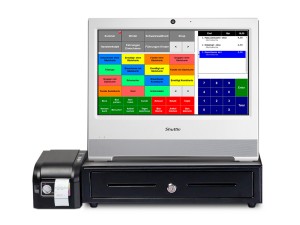

POS X50N White
8 GB RAM, 128 GB SSD
w/o Operating System
X50NPA Black
8 GB RAM, 128 GB SSD
Windows 11 IoT

Accessories

WLN-M12
WLAN-ax/Bluetooth (M.2)
PCP11
COM port adapter
POV21
Dual VESA stand
