XPC slim DH810S

Next-Gen AI Performance in an Ultra-Compact 1.35-Litre Footprint

Unleash modern desktop power without sacrificing space. The Shuttle XPC slim DH810S brings Intel’s latest Core Ultra 200 series processors ("Arrow Lake-S", LGA1851) right to the edge—complete with an integrated Neural Processing Unit (NPU) for dedicated local AI acceleration. Housed in a rugged 1.35-litre solid metal chassis, this compact powerhouse is built to thrive where standard PCs fail. Drive crisp, high-impact content across up to three independent displays with native 8K output via HDMI 2.1 and dual 4K DisplayPorts.

Engineered for 24/7 continuous operation and certified for ambient temperatures up to 50 °C, the DH810S combines advanced heatpipe cooling with industrial-grade reliability. With 8× USB ports (including 10 Gbps Type-C), Gigabit LAN, a native RS-232 COM port, and an included VESA mount, it is the ultimate engine for AI edge computing, dynamic digital signage, POS/POI systems, healthcare setups, and demanding automation environments.

Specifications DH810S (PDF) FAQ Downloads Image Resources Compatibility

Supports Intel Core Ultra 200 Series: Socket LGA1851 processors up to 65 W TDP ("Arrow Lake-S")
Up to 96 GB DDR5 Memory: 2× SO-DIMM slots (DDR5-5600, Dual Channel)
Triple Display Support: 1× HDMI 2.1 (up to 8K@60Hz) & 2× DisplayPort 1.4a (up to 4K@60Hz)
Flexible Dual Storage: 1× M.2-2280 NVMe SSD (PCIe 4.0 ×4 / SATA) + 1× 2.5" SATA drive bay
Extensive Connectivity: 8× USB ports (incl. 1× USB-C 10 Gbps & 1× USB-A 10 Gbps), 1× RS-232 COM port, Gigabit LAN

Wireless Ready: M.2-2230 slot for optional Wi-Fi/BT module & LTE kit preparation
Ultra-Compact Metal Chassis: Only 1.35 liters volume (19 × 16.5 × 4.3 cm)
Efficient Heatpipe Cooling: Dual 70 mm fans for stable long-term operation
Commercial Features: Remote power-on connector, hardware Power-on-after-power-fail, fTPM 2.0
Mounting Included: Standard VESA/wall mount kit included (75 × 75 / 100 × 100 mm)

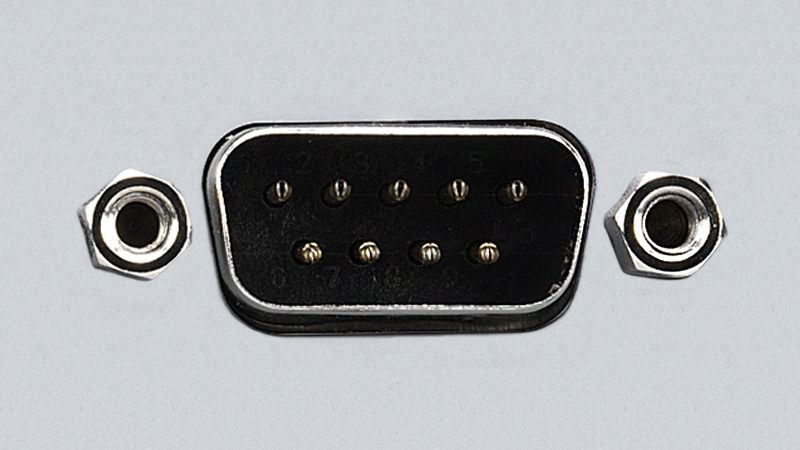

Legacy Meets Reliability: The COM Port

A true classic among interfaces, the RS-232 COM port remains essential for many professional applications. It is widely used in POS systems, scientific equipment, and industrial solutions where reliability is key. This model has one of them.

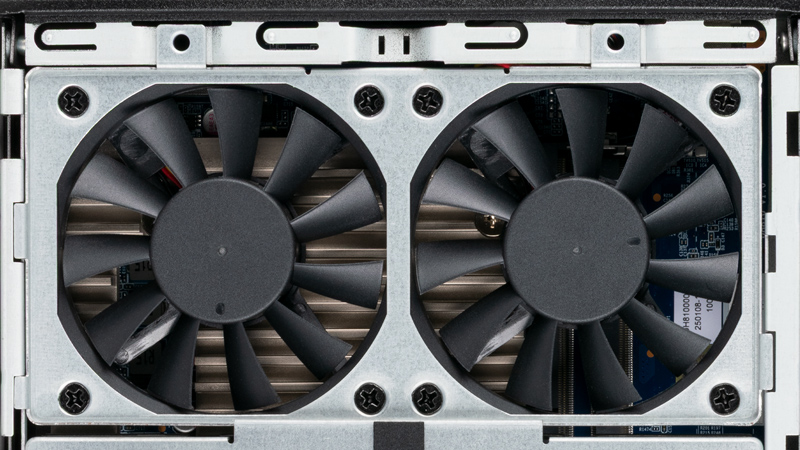

Enhanced Cooling for Optimal Performance

The newly designed chassis features an advanced heatpipe cooling system with an enlarged surface area and dual 70 mm fans. This ensures efficient heat dissipation, quiet operation, and maximum system stability.

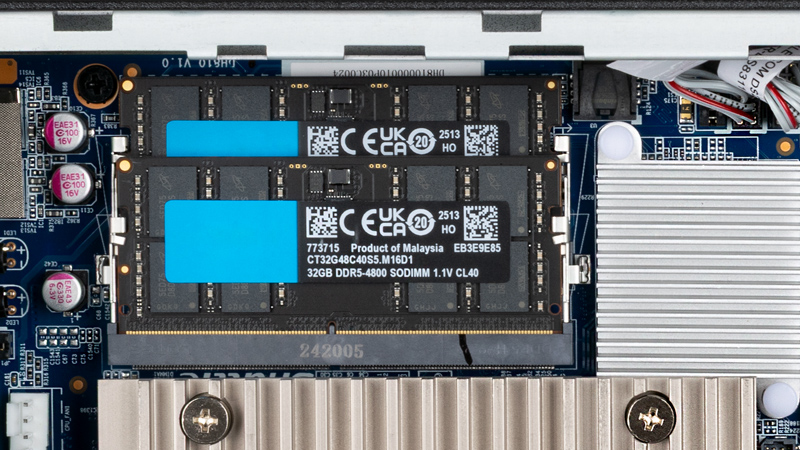

Up to 96 GB of DDR5-RAM

Modern professional applications require substantial memory resources. With two SO-DIMM slots supporting up to 96 GB of high-speed DDR5 RAM, this Mini-PC is well-equipped to handle even the most demanding tasks efficiently.

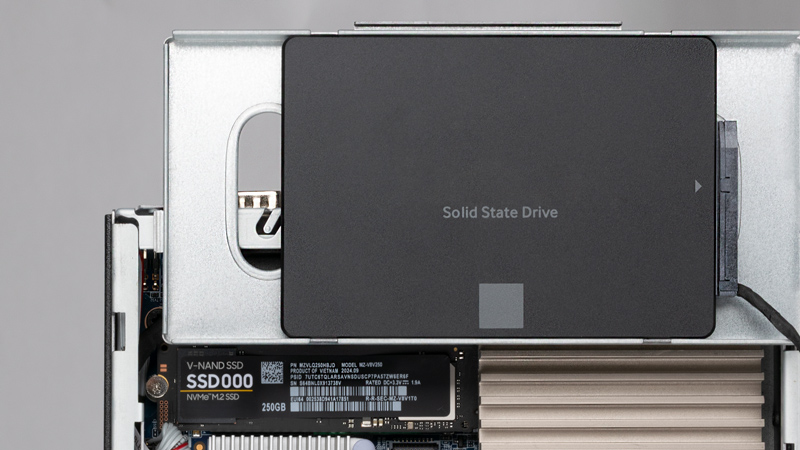

Room for a 2.5" Drive

In addition to high-speed NVMe SSDs, this model also accommodates traditional 2.5" storage devices*. Whether you opt for an HDD or SSD, this format provides ample space for terabytes of data storage.
(*Supports drives up to 12.5 mm in height.)

Triple 4K Display Support

With three high-resolution digital video outputs, this Mini PC offers maximum flexibility for multi-monitor setups. It features one HDMI 2.1 and DisplayPort connections, ensuring crisp 4K visuals across multiple screens.

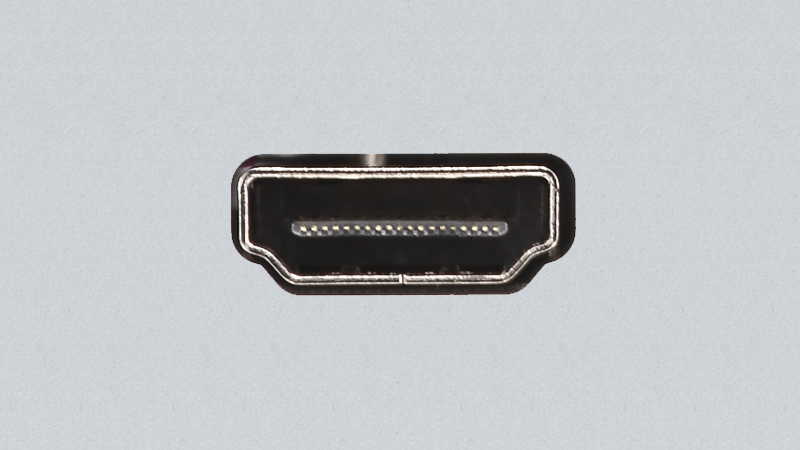

HDMI 2.1

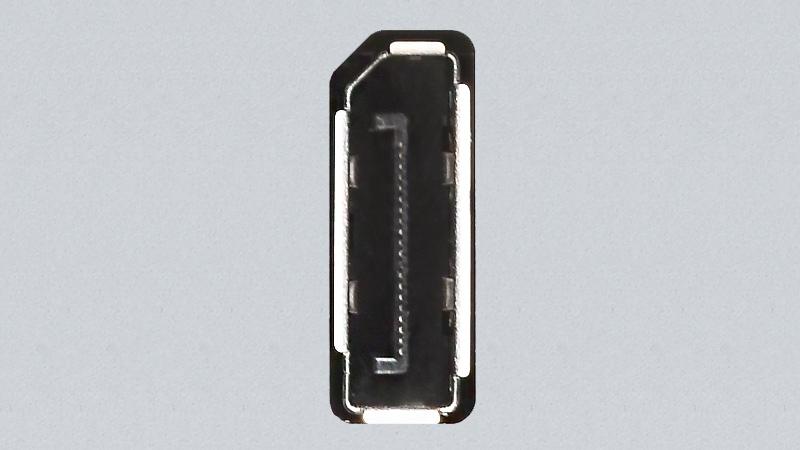

DisplayPort

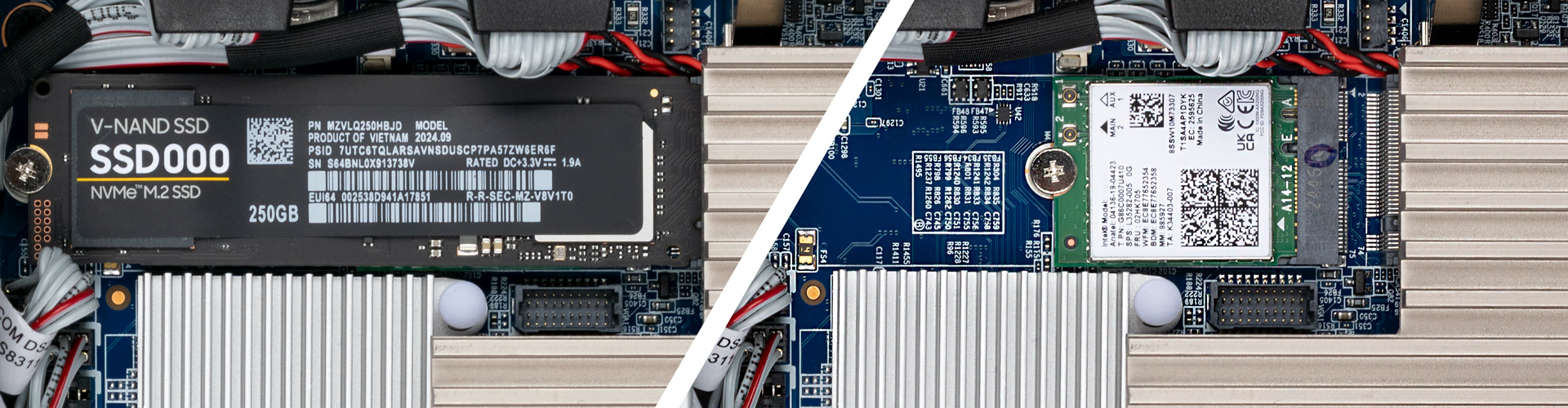

Dual M.2 Expansion

This Mini-PC features two M.2 slots, offering flexible expansion options for storage and connectivity. The high-speed PCIe interface ensures rapid data transfer, making it ideal for demanding applications.
