XPC nano NA20H2

Compact performance for everyday business

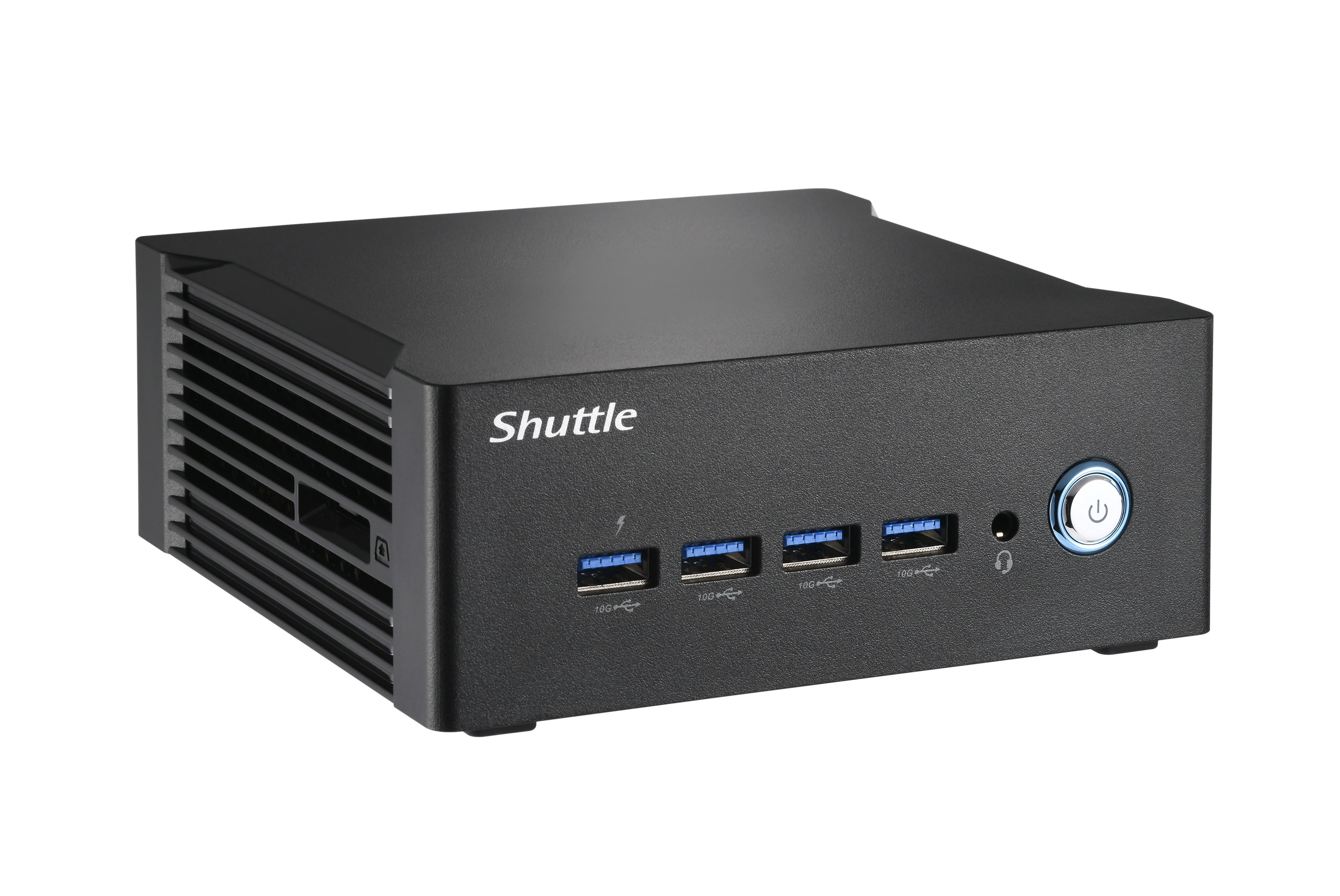

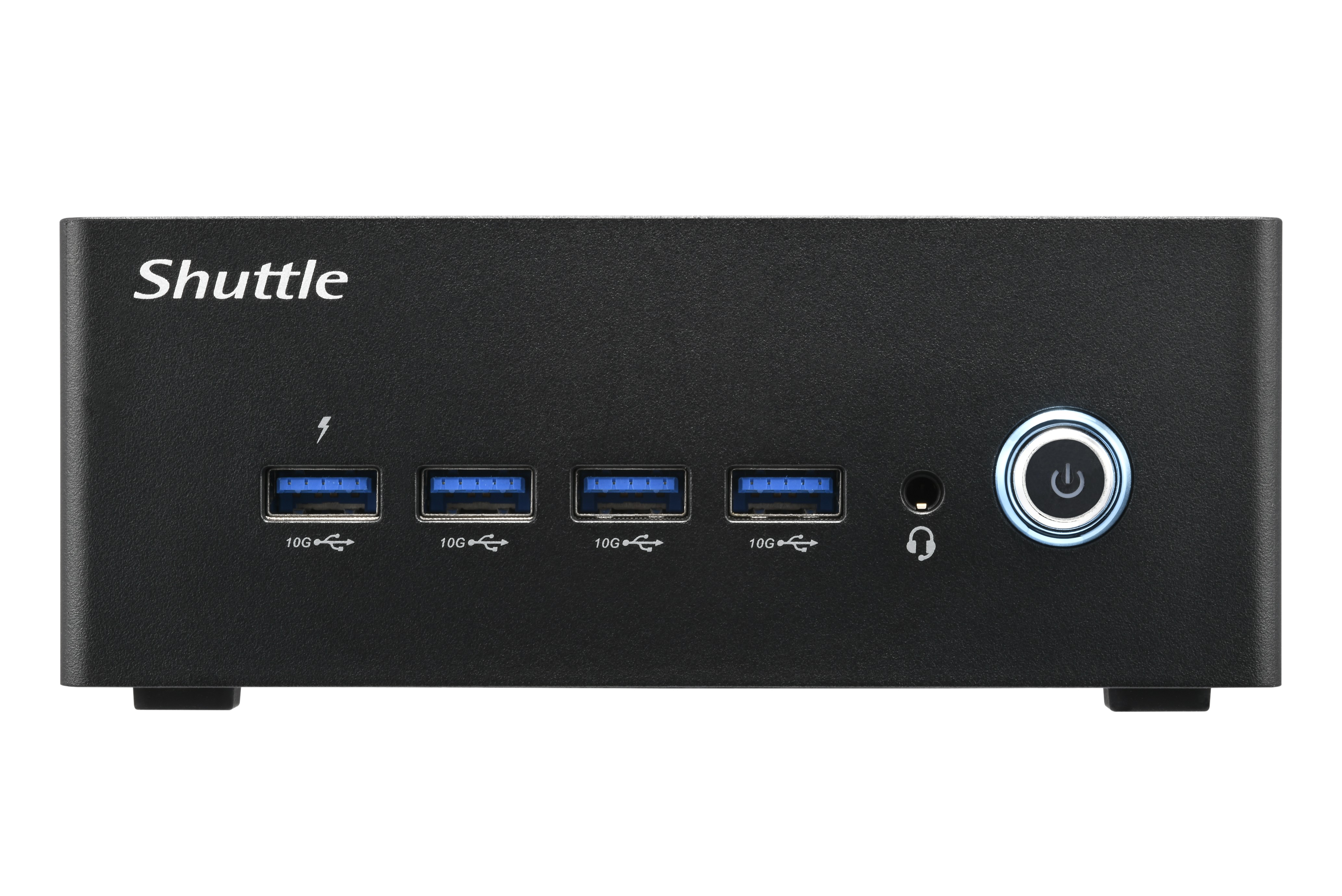

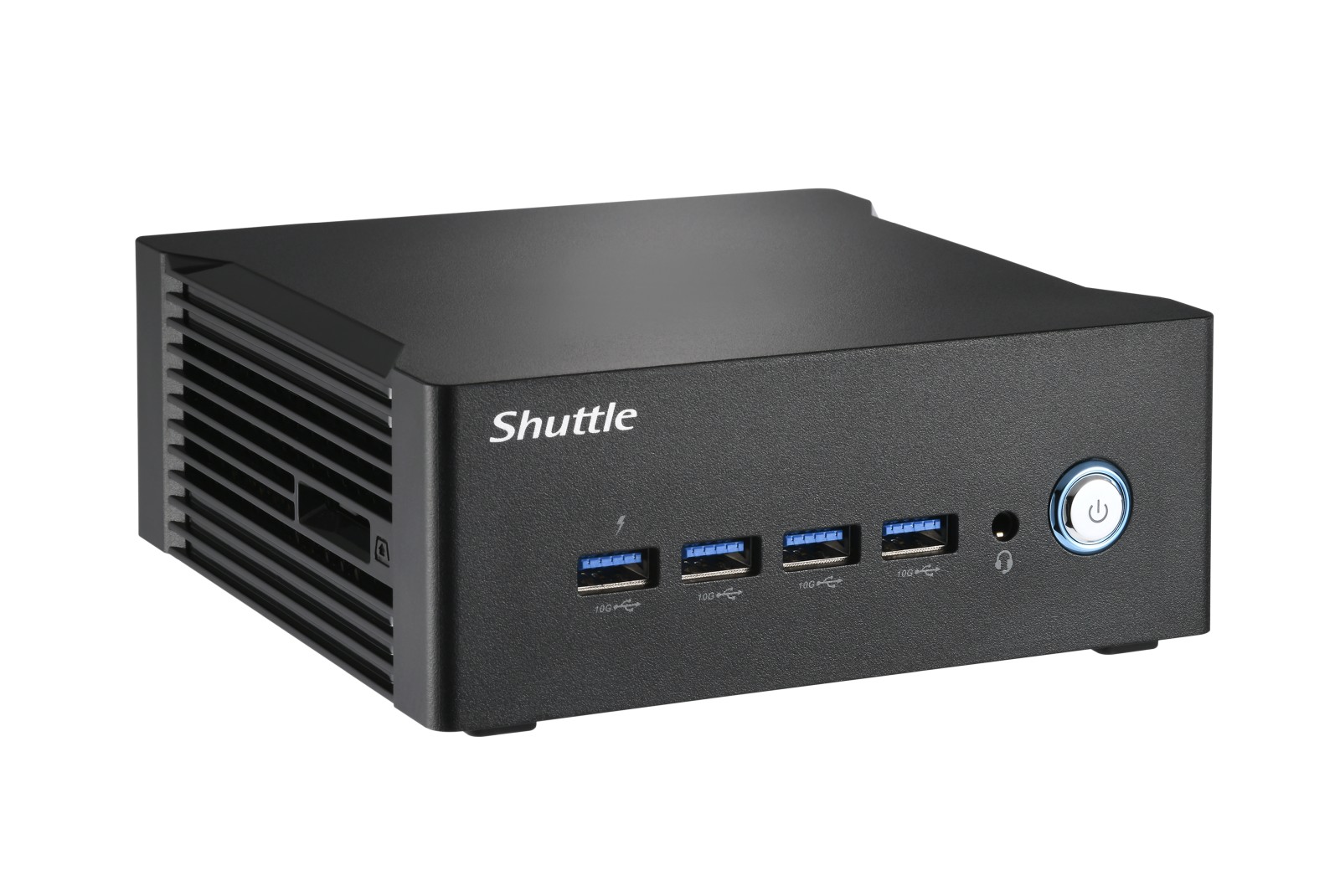

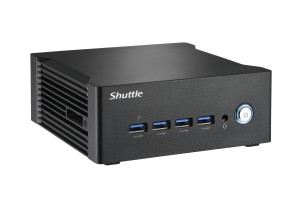

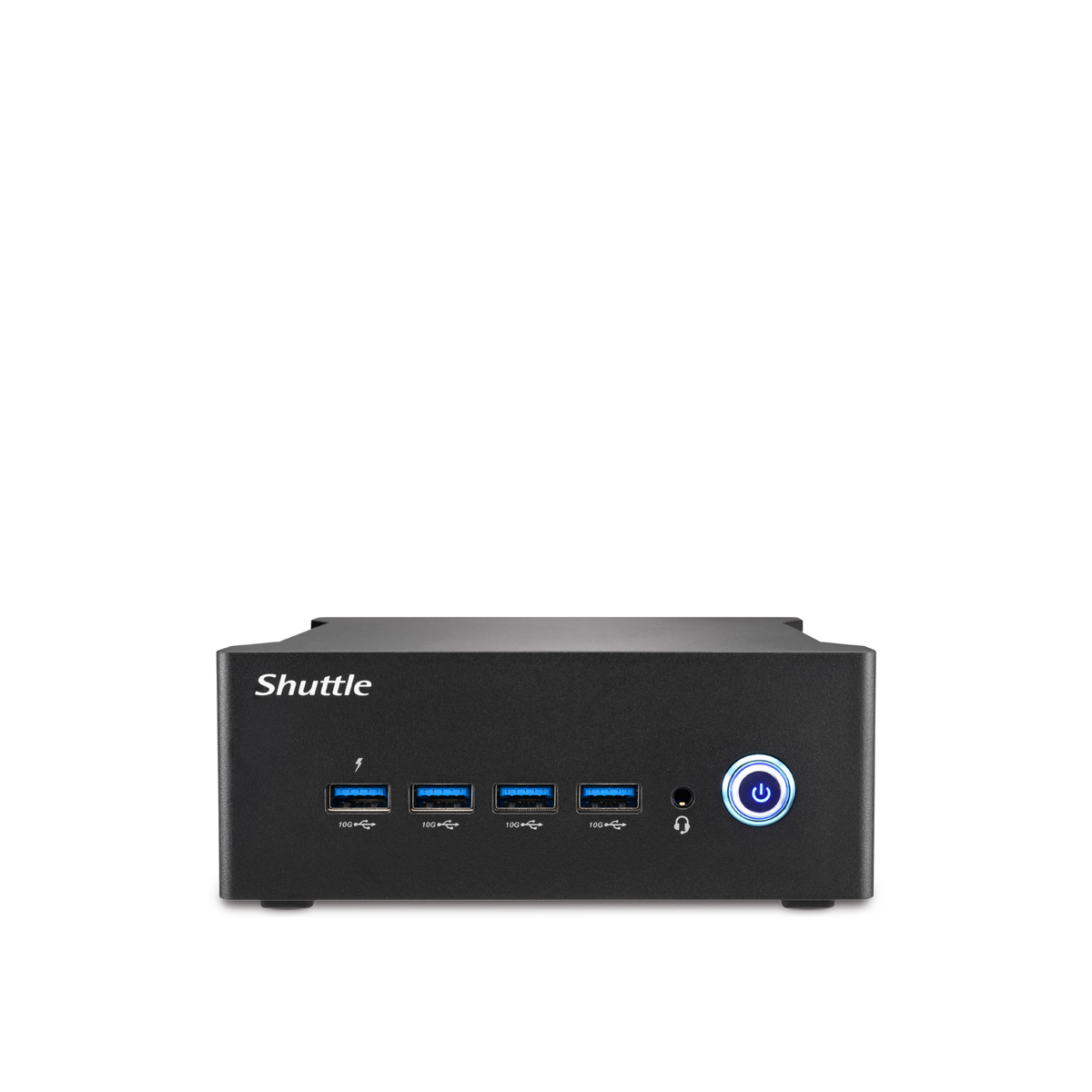

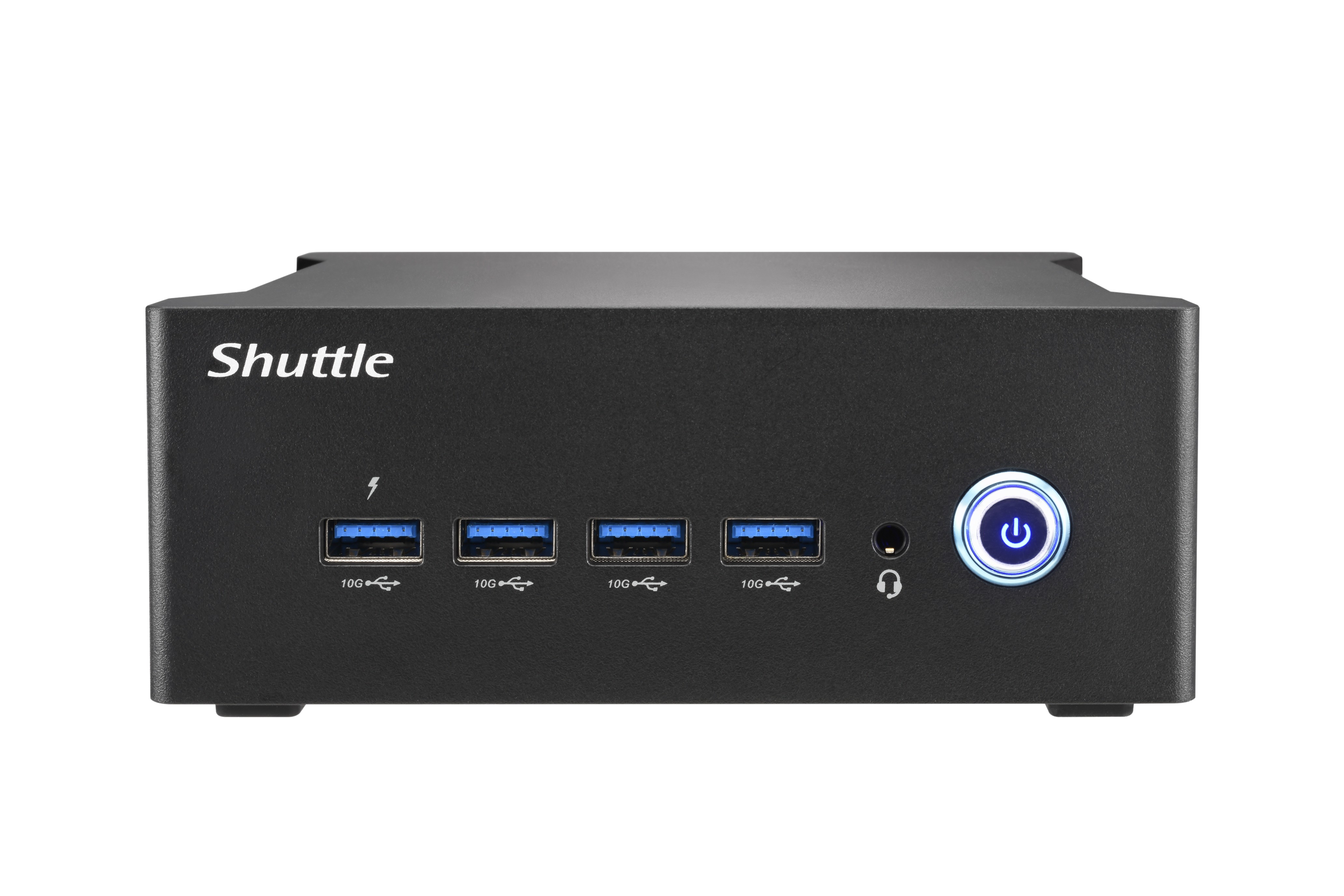

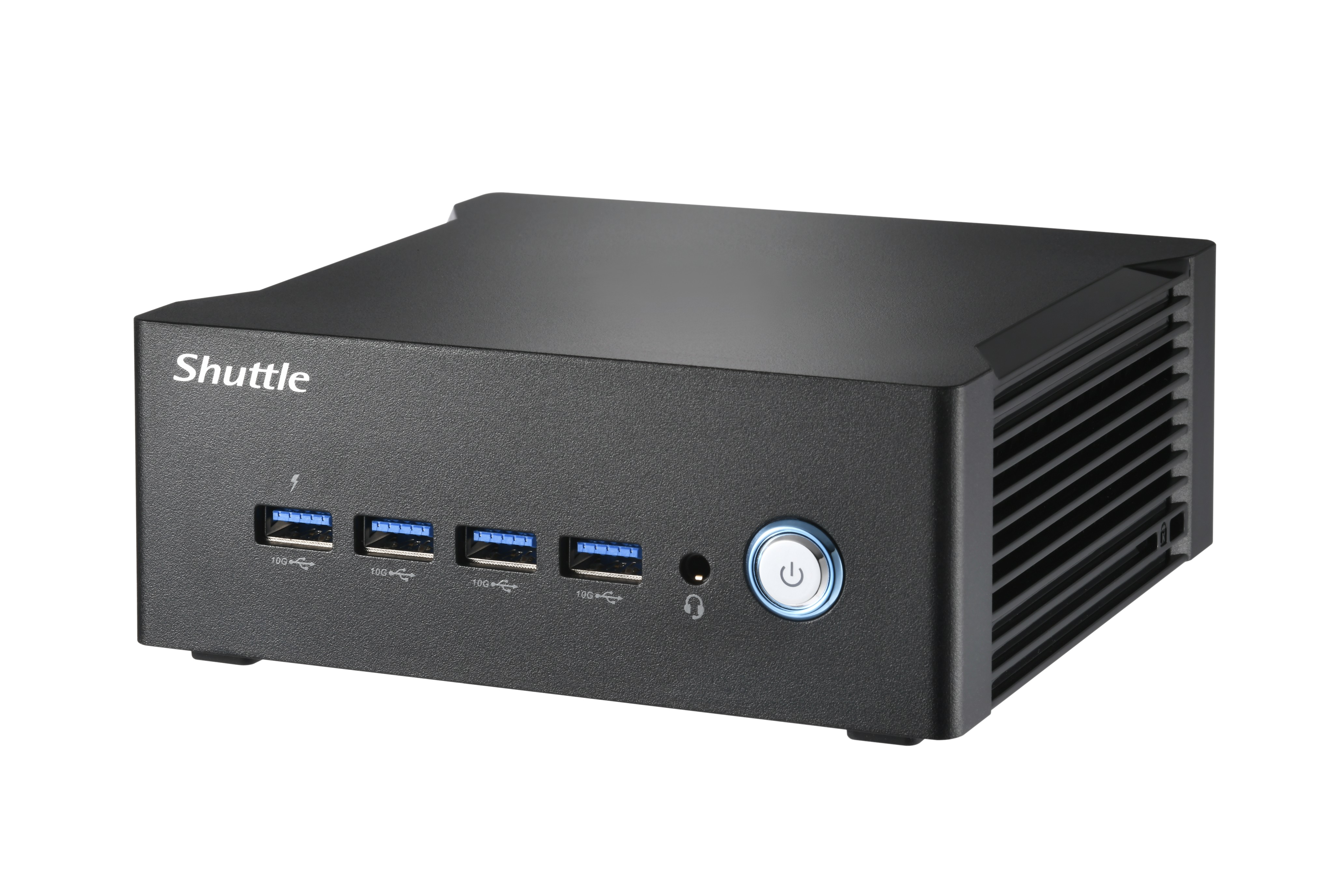

The Shuttle XPC nano NA20H2 is a compact 1-litre barebone PC built around the AMD Ryzen 7 H 255 APU. With eight Zen 4 cores, 16 threads and integrated AMD Radeon 780M graphics, it delivers dependable performance for office, commercial, digital-signage and space-constrained deployments. Its extensive connectivity includes HDMI 2.1, USB4, dual 2.5 Gbit Ethernet and support for up to four 4K displays, while the included VESA mount enables flexible installation. Unlike the NA20H5 and NA20H7 variants, the NA20H2 does not include an NPU, making it a cost-effective choice for mainstream commercial applications rather than dedicated on-device AI workloads.

Specifications NA20H2 (PDF) FAQ Downloads Image Resources Compatibility

AMD Ryzen 7 H 255 processor with 8 cores, 16 threads and Zen 4 architecture for reliable everyday performance
Integrated AMD Radeon 780M graphics for content creation, entertainment and multi-display setups
Expandable memory with up to 96 GB dual-channel DDR5-5600 across two SO-DIMM slots
Fast NVMe storage via M.2 2280 PCIe Gen 4 x4, plus an M.2 2230 slot for WLAN

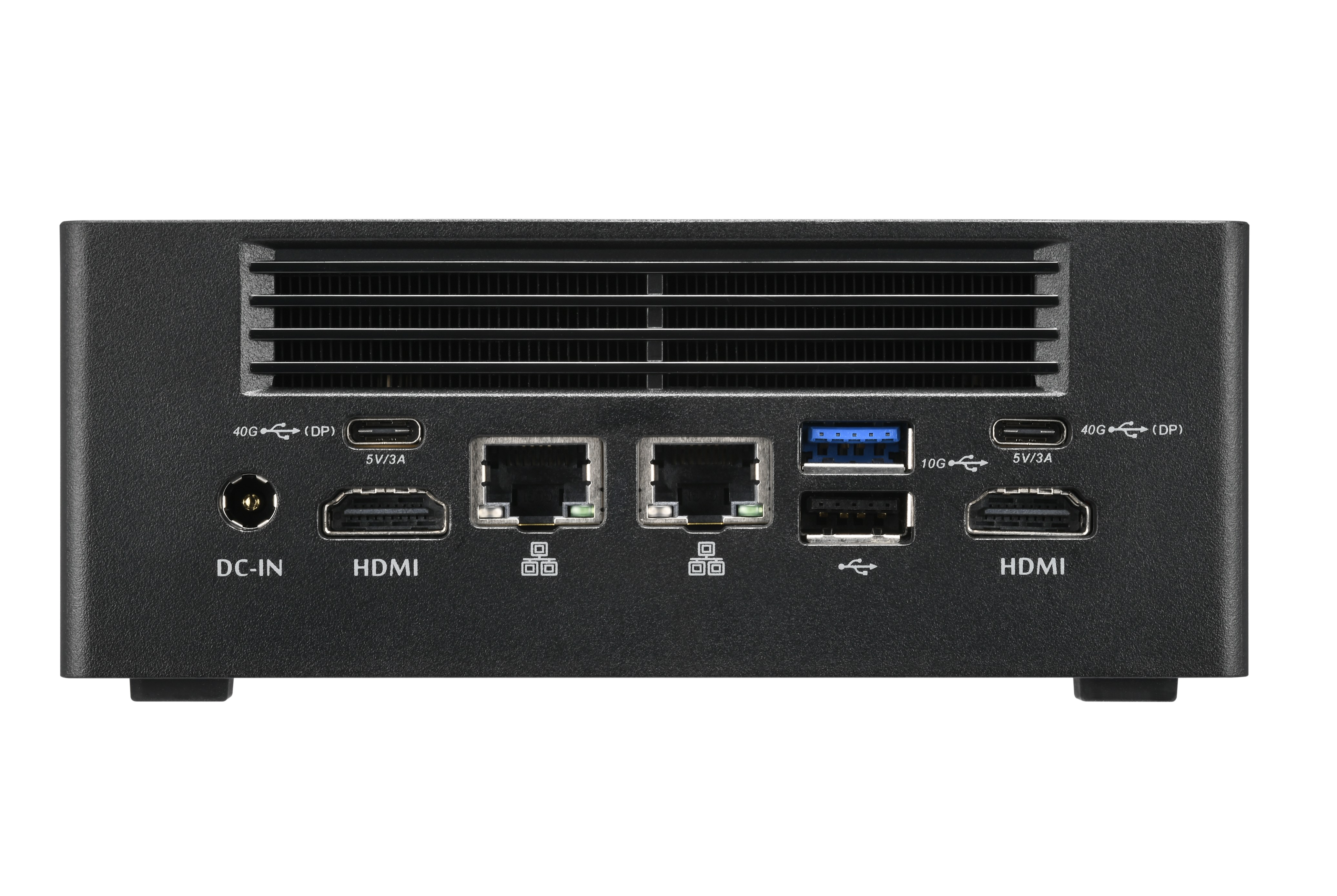

Support for up to four independent 4K displays via two HDMI 2.1 and two USB4 ports

High-speed connectivity with two USB4 ports and five USB 3.2 Gen 2 Type-A ports
Dual 2.5 Gbit Ethernet for fast, reliable networking with Wake-on-LAN and PXE boot
Convenient SD card reader with SDHC and SDXC support for cameras and data transfer
Configurable performance with a 35–54 W cTDP and temperature-controlled dual-fan cooling
Compact 1-litre nano chassis with included VESA mount for flexible installation

Blazing-Fast USB4 Connectivity

This Mini-PC is equipped with two USB4 ports, delivering an impressive 40 Gbit/s bandwidth for ultra-fast data transfers. These versatile ports also support UHD displays and enable fast charging for mobile devices, making them ideal for both high-performance computing and everyday convenience.

Up to 96 GB of DDR5 RAM

Modern professional applications require substantial memory resources. With two SO-DIMM slots supporting up to 96 GB of high-speed DDR5 RAM, this Mini-PC is well-equipped to handle even the most demanding tasks efficiently.

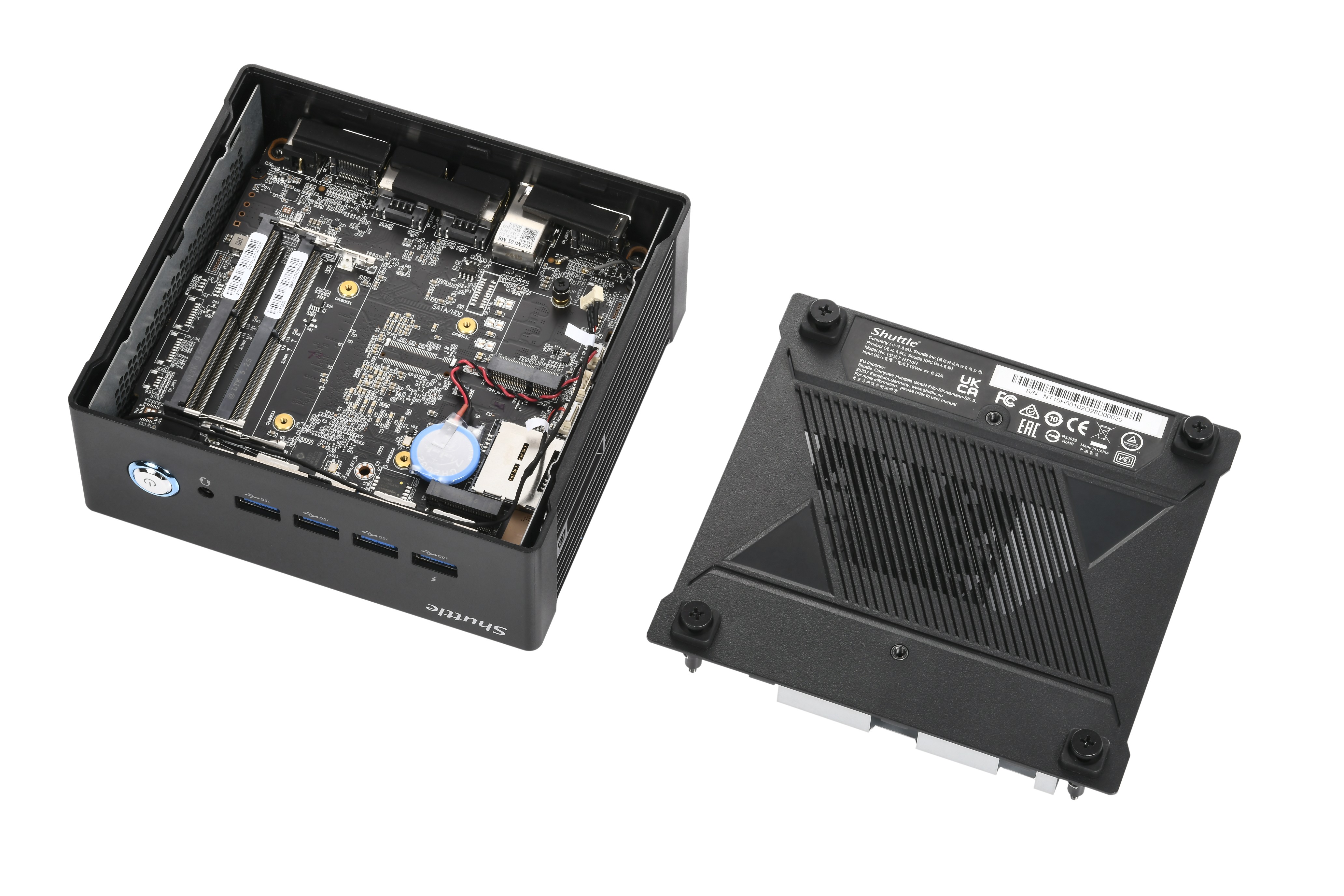

Two memory modules installed in SO-DIMM sockets

Quad 4K Display Support

This Mini-PC supports up to four high-resolution displays, offering maximum flexibility for multi-monitor setups. It features:

HDMI 2.1

USB4 Type-C with DisplayPort output

Integrated SD Card Reader for Easy Access

This Mini-PC features a conveniently positioned SD card reader on the side of the chassis, allowing quick and effortless access to external storage. Ideal for transferring media, backups, or expanding storage capacity with ease.

Dual M.2 Expansion

This Mini-PC features two M.2 slots, offering flexible expansion options for storage and connectivity. The high-speed PCIe interface ensures rapid data transfer, making it ideal for demanding applications.

1× M.2-2280 PCIe Gen 4 x4 - Supports NVMe SSDs for ultra-fast storage
1× M.2-2230 - Accommodates a Wi-Fi module or other expansion cards

Two extra fast network connections

This feature is particularly interesting for vital network applications – this is because two 2.5 Gigabit Ethernet interfaces with RJ45 connectors allow physically separate networks with impressive bandwidth.

Two ethernet cables connected to a mini PC

Built-in Anti-Theft Protection

This Mini-PC features a Kensington security slot (K-Slot), providing an effective anti-theft solution. Compatible security locks are widely available from specialist retailers, ensuring enhanced protection in various environments.
