Shuttle

POV21

Dual VESA stand

The Shuttle POV21 is a robust Dual VESA stand in black for one or two screens up to 21.5". The sturdy construction made of high-quality aluminium alloy carries loads of up to 20 kg without bending. It features universal pitch angle adjustment and an internal cable slot which makes for a clean, tidy appearance on the desk.

Installation is simple: first the VESA brackets are screwed to the display and then snapped and secured onto the stand. This high-quality stand is ideal for POS systems (consisting of AIO PC and customer display) or for Panel-PCs in industrial environments.

  • Compatibility: Compatible with Shuttle All-in-One PCs Series (X50V4…X50V9, P20U, P22U, P25N, P51U, P52U, P90U, P92U) and Panel-PCs Series (P21WL/ALxx, P15WL/ALxx).
  • Material & Design:
    - Colour: black
    - Unique stylish design with rounded edges
    - Stand made of aluminum alloy with some parts made of steel and plastic
    - Easy installation with two detachable VESA brackets
  • General features:
    - Suitable for single and dual screen use
    - Screen recommendations: 9.7" – 21.5"
    - Vesa hole distance: 75x75 and 100*100 mm
    - Vesa screws supplied in two different lengths

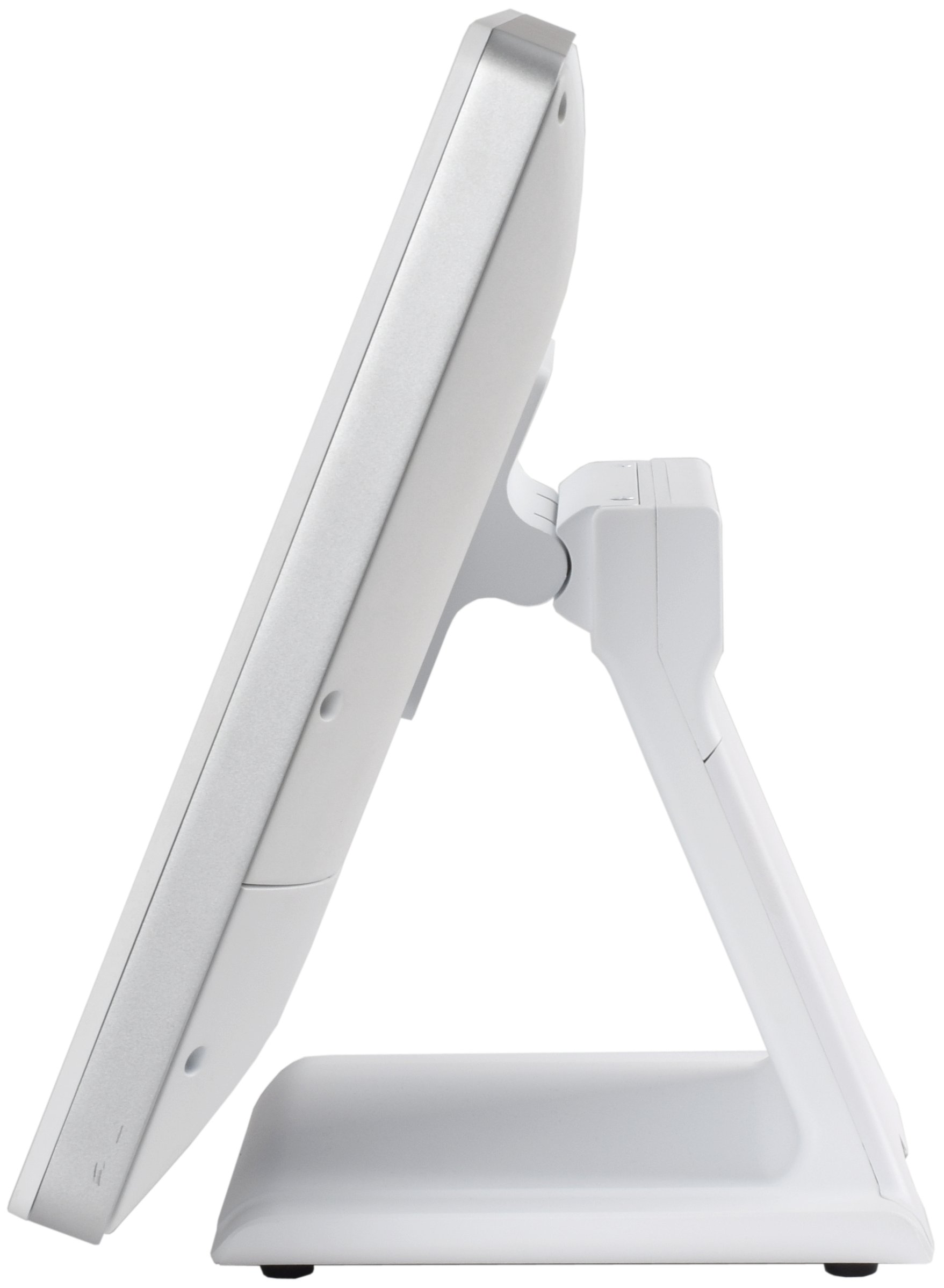

    - Adjustable tilt angle (depends on the displays):
    (1) 270° up, 30° down - (2) 120° up, 10° down

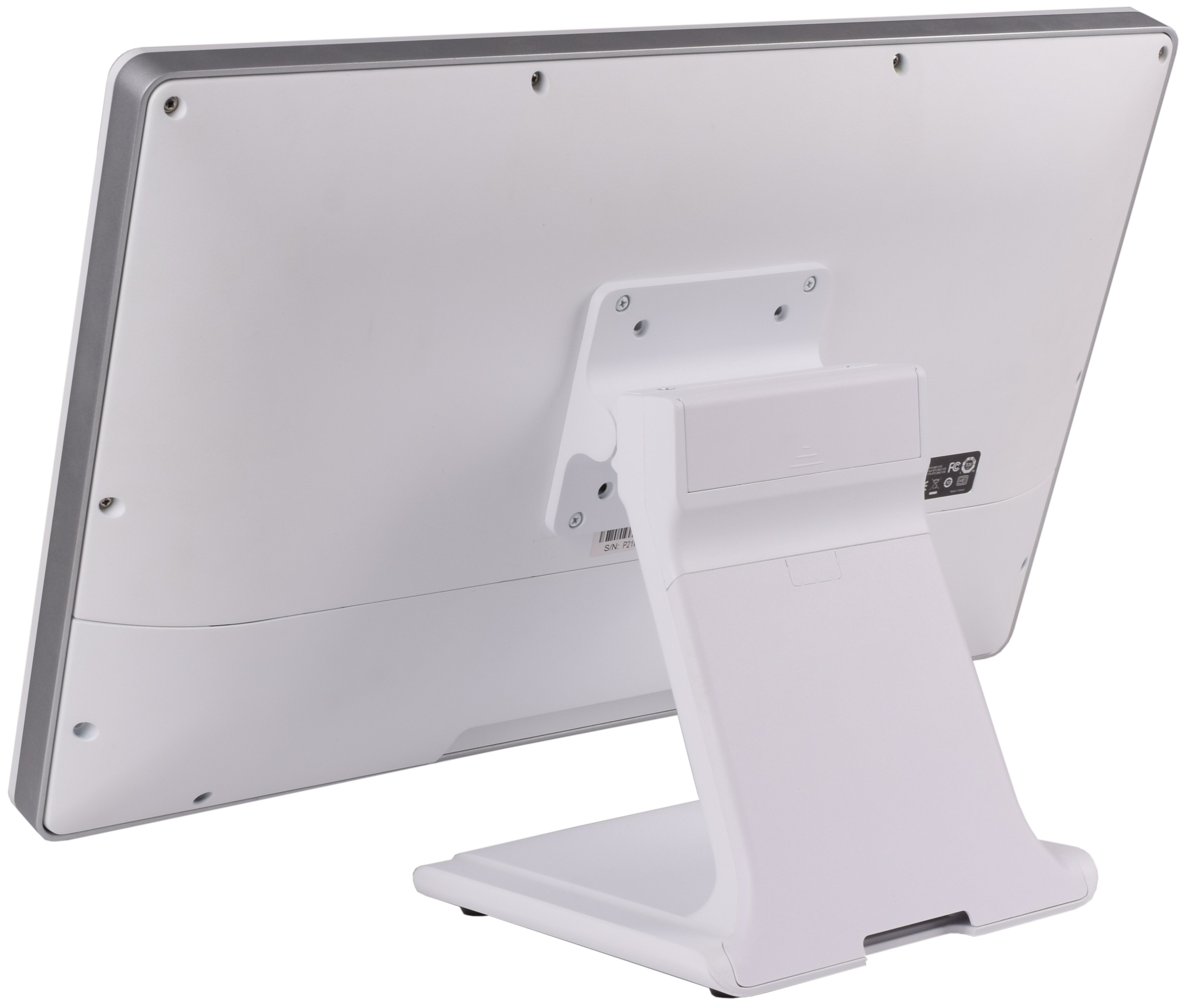

  • Optimised cable management with hidden cable duct and screwless magnetic back cover
  • Load capacity and stability
    - Strong load bearing capacity: max. 20 kg
    - Anti slip rubber feet
    - Stand can be screwed to surfaces (two M3 threads)
  • Dimensions & Weight:
    - Base plate: ca. 213 mm (W) x 218 mm (D)
    - Stand height: 232 mm (without VESA bracket)
    - Package: 270 x 270 x 270 mm
    - Weight: 2570 g net, 3150 g gross
  • Package contents:
    - Stand with magnetic back cover
    - VESA brackets (x2), Dummy cover (x1)
    - VESA screws: M4 x 8 mm (x8) and M4 x 12 (x8)
    - Countersunk head screws M4 x 8 mm (x4) to fix the brackets
    - Material to cover openings on the PC
    - Installation Guide
